CATALOG

Black Ceramic Rod

Product Features

Introduction of outline for ceramic rod

1. This stick knife sharpener absorbs more than 70% of external impacts to achieve anti-breaking. It has also received patents from multi-nations.

2. The ceramic raw materials of Chuan Cheung are all imported from Japan(or Australia.) and produced by special sintering technology in Taiwan. Ceramic possesses ultra-high hardness, high accuracy of straightness, and the ceramic body itself possesses low thermal conductivity. It is able to quickly absorb thermal energy and protect the cutting edge from being damaged by high heat produced during sharpening.

3. The ceramic body has very fine surface that helps prevent damage on cutting edge during sharpening. Many ultra-fine particles, which are invisible to the naked eye, are distributed on the surface of the body. (For details, for more information please link to website http://www.czhw.com.tw/enfilms-4.html. By multiplication of 200 times, the particles can be seen in the ceramic micro-diagram.) Not only does it prevent damage on the knife when sharpening, it also effectively raises the efficiency of sharpening. And the ceramic body itself will not raise ceramic powder, hence it will not breed bacteria, will not leave a strange odor, is easy to wash, and never rusts.

4. The ceramic made in this factory reached the Mohs 8 after the SGS hardness test. (Please link to website http://www.czhw.com.tw/enmono-2.html for hardness testing report from SGS.)This hardness is not only much higher than all steel knives in the market; it is also higher than some ceramic knives lower in hardness. Therefore, it is able to effectively and quickly sharpen knives.

5. The weight of ceramic body is well below that of steel filament stick knife sharpener and electroforming diamond dust stick knife sharpener. The user will not be tired even after prolonged use.

6. The entire body of this product is made from non-toxic and odorless ceramic. Moreover, scraps produced during sharpening will adhere completely to the sharpener; thus, there will be no toxic substance or metallic residue.

7. The ceramic rod can be cleaned in water and air-dried. It will extend the lifetime if user often to clean the rod.

8. We are the world’s first factory to have shot the anti-break test of ceramic bodies on video. The anti-breaking property of this product is well demonstrated in the video. Please logon Chuan-Cheung’s official website to watch the amazing anti-break test on video!

We have a new design to make stripes on the ceramic rod. It works very well for sharpening the blades when it was stained with oil; blades are in high hardness; blades were blunt.

When the blade is blunt, sharp it on the part with stripes and then sharp again on the smooth part. It will refine the sharpness within short time.

At present, our standard quality is in diameter 16mm +/- 0.2mm

Rod in length ( rod only):223mm, 273mm.

It asks for MOQ in mass production if customers request for diameter and length in special size. Please make contact with us for more information in details.

Color of rod: black ( it also can be in white color and ask for MOQ)

Hardness of rod: 8 Mohs

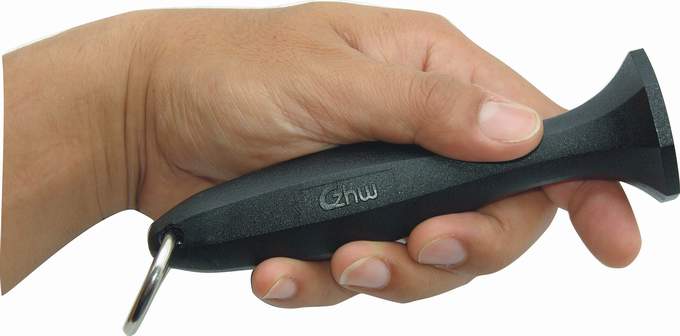

Please refer to above picture showing as assemble finished: diameter: 16mm, length : 273mm.
Item No.: CPE-16273BS, This is just for reference. The real size is based on real sample.

Handle style:”PE”
Over length of handle(the stainless steel hanging ring is not included):152mm

Diameter of stainless steel hanging ring: about 33mm

The thinnest diameter of handle: 18.3mm

The thickest diameter of handle( the protecting slice is not included):31.5mm

Color of handle: in black, or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

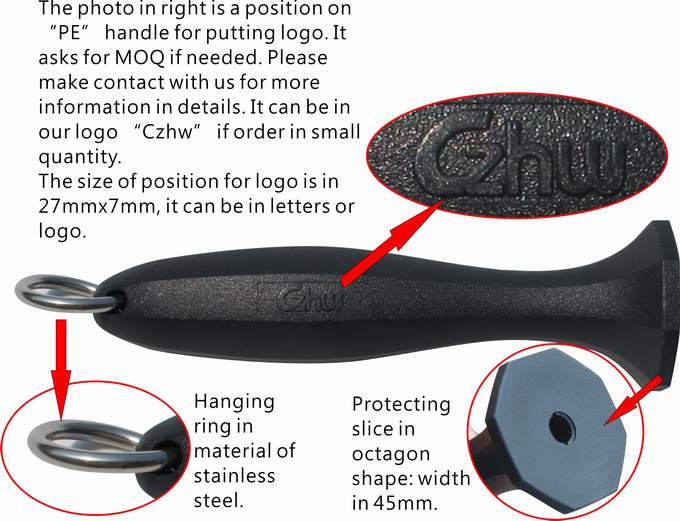

The producing cost of “PE” handle is not high. It will be the best choice if customers consider to put logo on handle.

The item number of “ PE” handle assembled with shock-absorbing ceramic rod straight end cap will be showed as follows:

CPE-16223BS: “PE” handle in black color, straight end cap, black rod, diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPE-16273BS: “PE” handle in black color, straight end cap, black rod, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.

CPE-16223BS2: “PE” handle in black color, straight end cap, black rod with stripes & smooth parts , diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPE-16273BS2: “PE” handle in black color, straight end cap, black rod with stripes & smooth parts, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.

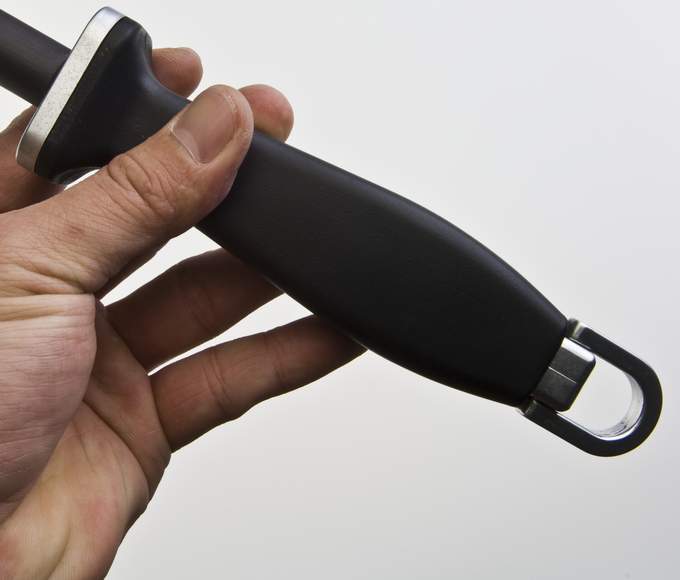

Please refer to above picture showing as assemble finished: diameter: 16mm, length : 273mm.
Item No.: CPF-16273BS, This is just for reference. The real size is based on real sample.

Handle style:”PF”
Over length of handle( hanging ring is not included): 132mm

Size of hanging ring: 15.8mmx17.8mm around

The thinnest size of handle:18.7mmx24mm(rectangle shape)

The biggest size of handle ( protecting slice is not included): 25.2mmx34.9mm(rectangle shape)

Color of handle: in black, or in any color per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

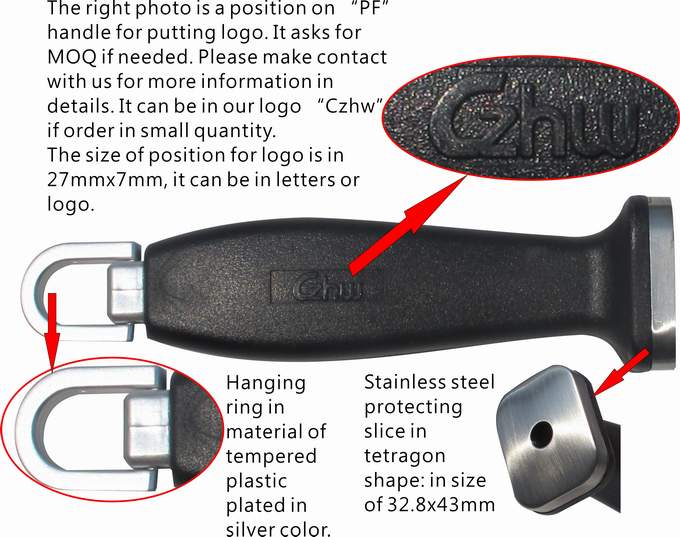

The producing cost of “PF” handle is very high & the shape is artistic. Logo can be put on handle. It will be the best choice if customers consider to put logo on handle & selling their products in high end level.

The item number of “ PF” handle assembled with shock-absorbing ceramic rod straight end cap will be showed as follows:

CPF-16223BS: “PF” handle in black color, straight end cap, black rod, diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPF-16273BS: “PF” handle in black color, straight end cap, black rod, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.

CPF-16223BS2: “PF” handle in black color, straight end cap, black rod with stripes & smooth parts , diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPF-16273BS2: “PF” handle in black color, straight end cap, black rod with stripes & smooth parts, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.

Please refer to above picture showing as assemble finished: diameter: 16mm, length : 223mm.
Item No.: CPV-16223BS, This is just for reference. The real size is based on real sample.

Handle style: “PV”
Over length of handle: 120mm
The thinnest diameter of handle: about 21.7mm
The most width of handle ( protecting slice is not included):
about 28mm
Color of handle: black color , or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

“ PV” handle is the cheapest style and it will be the best choice if customers considering about importing cost.

The item number of “ PV” handle assembled with shock-absorbing ceramic rod straight end cap will be showed as follows:

CPV-16223BS: “PV” handle in black color, straight end cap, black rod, diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPV-16223BS2: “PV” handle in black color, straight end cap, black rod with stripes & smooth parts , diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

Please refer to above picture showing as assemble finished: diameter: 16mm, length : 223mm.
Item No.: CPJ-16223BS, This is just for reference. The real size is based on real sample.

Handle style: “PJ”

Over length of handle:128mm

The thinnest diameter of handle: about 22mm

The biggest diameter of handle(protecting slice is not included): about 30mm

Color of handle: black color , or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black

The item number of “ PJ” handle assembled with shock-absorbing ceramic rod straight end cap will be showed as follows:

CPJ-16223BS: “PJ” handle in black color, straight end cap, black rod, diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPJ-16223BS2: “PJ” handle in black color, straight end cap, black rod with stripes & smooth parts , diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

Please refer to above picture showing as assemble finished: diameter: 16mm, length : 273mm.
Item No.: CPT-16273BS, This is just for reference. The real size is based on real sample.

Handle style:”PT”

Over length of handle(stainless steel hanging ring is not included):131mm

Diameter of stainless steel hanging ring: 33mm around

The thinnest diameter of handle:21mm

The biggest diameter of handle(protecting slice is not included):26.5mm

Color of handle: black color, or in any colors per customers’ choice. But it will ask for MOQ for mass production if request for any colors except black.

The producing cost of “PT” handle is not so high. It’s the most popular and pattern in good sales. But logo can’t be put on handle. If customers prefer this pattern of handle and consider to put logo, it can be assembled with sharpening rods and logo put on rods.

The item number of “ PT” handle assembled with shock-absorbing ceramic rod straight end cap will be showed as follows:

CPT-16223BS: “PT” handle in black color, straight end cap, black rod, diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPT-16273BS: “PT” handle in black color, straight end cap, black rod, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.

CPT-16223BS2: “PT” handle in black color, straight end cap, black rod with stripes & smooth parts , diameter:16mm, length:223mm. For this size, the probability of anti-broken is almost 90% if it was fallen down on the floor from the working place in height of 100cm.

CPT-16273BS2: “PT” handle in black color, straight end cap, black rod with stripes & smooth parts, diameter:16mm, length:273mm. For this size, the probability of anti-broken is almost 80% if it was fallen down on the floor from the working place in height of 100cm.
